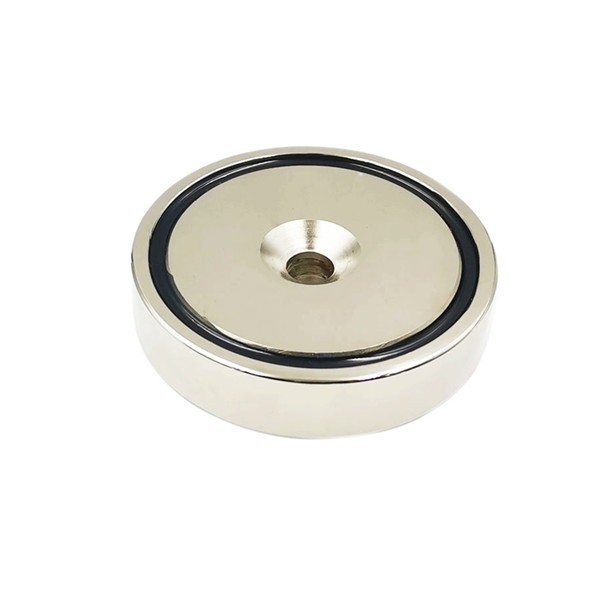

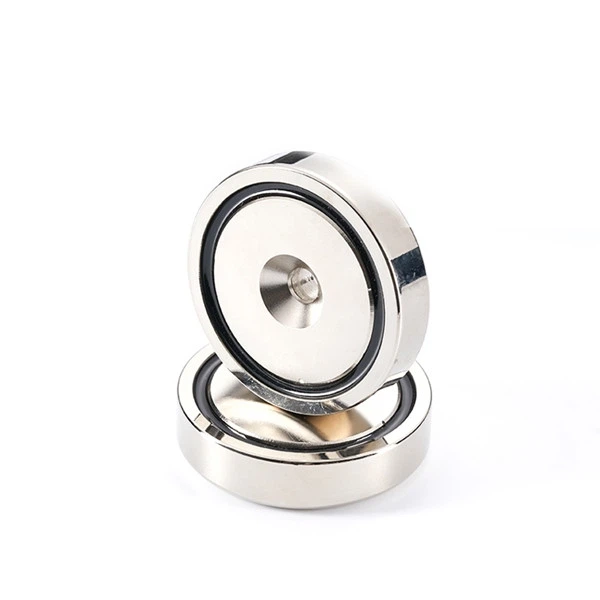

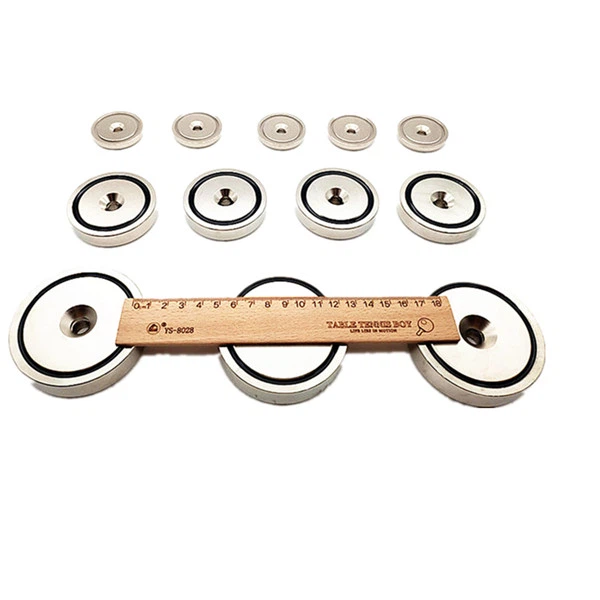

Neodymium lauj kaub Magnets

Engineered rau robust tuav thiab fixture daim ntaub ntawv, pebNeodymium lauj kaub hlau nplaumintegrate lub siab -lub zog sintered NdFeB hlau nplaum nyob rau hauv ib tug precision-stamped steel khob. Qhov kev tsim no ua rau muaj txiaj ntsig zoo rub lub zog los ntawm kev tsom mus rau qhov chaw sib nqus los ntawm cov hlau rim, thaum muab cov vaj tsev ruaj khov nrog ua ntej -drilled mounting qhov lossis countersunk sockets rau kev yooj yim installation. Raws li cov chaw tsim khoom ncaj qha nrog kev tswj hwm tag nrho ntawm ob qho tib si cov tub ntxhais sib nqus thiab cov hlau fabrication, peb xa cov khoom nrog kev txhim khu kev qha rau kev lag luam clamping, machinery, thiab kev teeb tsa. Pebneodymium lauj kaub hlau nplaumyog qhov mus -rau kev xaiv rau engineers nrhiav ib tug npaj txhij- rau - nruab, siab - tuav- lub zog tivthaiv.

Parameter	Paub meej
Khoom npe	Siab -Tub kub Neodymium Magnets (Qib Kub Resistant)
Standard Qib	N38
Ua haujlwm kub siab tshaj plaws	80 degree
Siab -Temp Remanence (Br) Retention	<80°C (Measured per IEC 60404-8-1)
Cov khoom siv tseem ceeb	Siab -purity NdFeB nrog Dysprosium/Terbium grain ciam diffusion
Txheej rau High Temp	Nickel-Copper-Ni-Cu-Ni) 15-20µm, Epoxy (rau hluav taws xob rwb thaiv tsev)
Intrinsic Coercivity (Hcj)	Ntau dua lossis sib npaug rau 25 kOe (UH Qib), kom ntseeg tau tias muaj kev tiv thaiv demagnetization
Kub Coefficient ntawm Br	-0.11 txog -0.09% /℃(Zoo tshaj rau tus qauv N qib)
Dimensional kam rau ua	± 0.05mm (Qhov av Precision rau thermal sib dhos)
Kev Ua Raws & Kev Xeem	IATF16949, AEC-Q200 simulation, txuas ntxiv thermal aging tests



Hu rau tam sim no



• Optimized Sib Nqus Circuit Court

  Lub khob steel ua raws li tus neeg xyuas pib flux, tsom rau cov hlau nplaum sab nraud los ntawm ntug. Qhov kev tsim no tuaj yeem ua rau kom muaj zog rub tawm los ntawm 30-50% piv rau cov hlau nplaum liab qab ntawm tib qhov loj, thaum tseem tiv thaiv cov nkig NdFeB core los ntawm kev cuam tshuam ncaj qha thiab corrosion.

• Precision Mechanical Assembly

  Peb nyob rau hauv -lub tsev machining xyuas kom lub khob sab hauv txoj kab uas hla, qhov tob, thiab mounting qhov chaw tuav nruj kam rau ua (feem ntau ± 0.1mm). Qib siab -neodymium hlau nplaumyog nruj nreem nias thiab feem ntau sib txuas rau hauv qhov chaw, tiv thaiv kev txav sab hauv hauv qab vibration lossis shock loads.

• Ntau yam & Npaj-rau-Siv

  Muaj nrog ntau yam kev xaiv mounting: countersunk qhov rau flush mounting, los ntawm - qhov rau bolting, los yog welded studs. Lub khob steel feem ntau yog zinc-plated los yog hmoov-coated, muab ob qho tib si corrosion kuj thiab kev ua tiav zoo tsim nyog rau cov khoom lag luam thiab kev lag luam kawg.

•

Peb cov khoom sib xyaw ua ke ob qhov kev ua tau zoo: precision hlau stamping / txheej thiab qib siab hlau nplaum sintering. NdFeB cores yog tsim los siv ntau dua los yog sib npaug rau 95% purity raw cov ntaub ntawv, kom ntseeg tau siab remanence thiab zoo ib yam. Cov khob steel yog fabricated kom meej qhov ntev, nrog xov zoo xyuas. Txhua batch ntawm tiavneodymium lauj kaub hlau nplaumundergoes rub- quab yuam pov thawj thiab txheej adhesion xeem. Peb qhov chaw sib koom ua ke tuav IATF 16949 thiab ISO 9001 ntawv pov thawj, thiab peb cov khoom ua raws li RoHS thiab REACH cov lus qhia rau kev faib thoob ntiaj teb.

Txhawm rau tiv thaiv khawb thiab xeb thaum thauj khoom, txhua lub lauj kaub hlau nplaum yog ib tus zuj zus ntim. Tom qab ntawd lawv tau ntim rau hauv cov thawv ntim khoom sab hauv (8-tsim cell) ua ntej muab tso rau hauv cov thawv xa khoom ruaj khov. Qhov kev tiv thaiv ntau- txheej no yog pov thawj rau kev thauj mus los ntev thiab huab cua. Peb txhawb nqa cov qauv thov rau kev sim thiab muab cov MOQ hloov pauv rau kev tsim khoom.

18- hli kev ua tau zoo warranty tshwj xeeb yog them rau thermal degradation. Kev them nyiaj pub dawb sib nqus Circuit Court simulation kev txhawb nqa rau cov haujlwm uas muaj qhov siab - qhov kub thiab txias. Ua ntej nkag mus rau peb cov ntaub ntawv engineering pab pawg rau kev ntsuas tsis ua haujlwm. Rau cov ntawv cog lus OEM ntau, peb muab cov kev soj ntsuam zoo nyob rau hauv ib ntus thiab kev sib koom ua ke kev ntseeg siab kom siv tau cov thermal stability ntev.

1. Precise alloying: High -purity Neodymium, Hlau, Boron, thiab ntsuas Dysprosium / Terbium yog nqus induction melted.
2. Dav hlau milling & nias: Cov khoom yog milled kom zoo, cov hmoov sib xws thiab nias rau hauv ib qho chaw nitrogen nyob rau hauv ib qho chaw sib nqus sib nqus.
3. High-kub sintering: Green compacts yog sintered nyob rau hauv meej, multi-theem qhov cub kom tsim ntom, aligned microstructures.
4. Kev kho cua sov: Ib kauj ruam tseem ceeb rau cov qib cua sov, ua kom zoo tshaj qhov kev faib tawm ntawm qhov hnyav tsawg - ntiaj teb cov ntsiab lus ntawm cov ciam teb.
5. Precision machining: CNC sib tsoo thiab slicing ua tiav nruj kam rau ua rau siab -ceev rotors thiab sib dhos.
6. Advanced plating: Multi-txheej Ni-Cu-Ni electroplating nyob rau hauv automated kab kom ntseeg tau corrosion kuj sib xws nrog high temps.
7. Stabilization & magnetization: Thermal stabilization ua ntej-cov xwm txheej ntawm cov hlau nplaum, ua raws li cov hlau nplaum sib nqus hauv cov khoom siv.
8. Kev sim ua tiav: 100% qib kev pov thawj ntawm chav tsev kub, nrog batch-raws li siab - qhov ntsuas kub ntawm qhov ntsuas kub.
